Handler class for the NtConnectPort system call. More...

#include <NtConnectPort.hh>

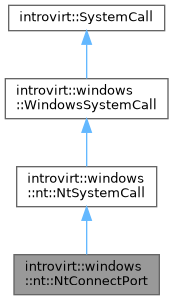

Inheritance diagram for introvirt::windows::nt::NtConnectPort:

[legend]

Collaboration diagram for introvirt::windows::nt::NtConnectPort:

[legend]

Public Member Functions
virtual guest_ptr< void >	ClientPortHandlePtr () const =0
	Getter for ClientPortHandlePtr.

virtual guest_ptr< void >	ServerPortNamePtr () const =0
	Getter for ServerPortNamePtr.

virtual guest_ptr< void >	SecurityQosPtr () const =0
	Getter for SecurityQosPtr.

virtual guest_ptr< void >	ClientSharedMemoryPtr () const =0
	Getter for ClientSharedMemoryPtr.

virtual guest_ptr< void >	ServerSharedMemoryPtr () const =0
	Getter for ServerSharedMemoryPtr.

virtual guest_ptr< void >	MaximumMessageLengthPtr () const =0
	Getter for MaximumMessageLengthPtr.

virtual guest_ptr< void >	ConnectionInfoPtr () const =0
	Getter for ConnectionInfoPtr.

virtual guest_ptr< void >	ConnectionInfoLengthPtr () const =0
	Getter for ConnectionInfoLengthPtr.

virtual void	ClientPortHandlePtr (const guest_ptr< void > &pClientPortHandle)=0
	Setter for ClientPortHandlePtr.

virtual void	ServerPortNamePtr (const guest_ptr< void > &pServerPortName)=0
	Setter for ServerPortNamePtr.

virtual void	SecurityQosPtr (const guest_ptr< void > &pSecurityQos)=0
	Setter for SecurityQosPtr.

virtual void	ClientSharedMemoryPtr (const guest_ptr< void > &pClientSharedMemory)=0
	Setter for ClientSharedMemoryPtr.

virtual void	ServerSharedMemoryPtr (const guest_ptr< void > &pServerSharedMemory)=0
	Setter for ServerSharedMemoryPtr.

virtual void	MaximumMessageLengthPtr (const guest_ptr< void > &pMaximumMessageLength)=0
	Setter for MaximumMessageLengthPtr.

virtual void	ConnectionInfoPtr (const guest_ptr< void > &pConnectionInfo)=0
	Setter for ConnectionInfoPtr.

virtual void	ConnectionInfoLengthPtr (const guest_ptr< void > &pConnectionInfoLength)=0
	Setter for ConnectionInfoLengthPtr.

virtual uint64_t	ClientPortHandle () const =0

virtual void	ClientPortHandle (uint64_t ClientPortHandle)=0

virtual const UNICODE_STRING *	ServerPortName () const =0

virtual UNICODE_STRING *	ServerPortName ()=0

virtual uint32_t	MaximumMessageLength () const =0

virtual void	MaximumMessageLength (uint32_t MaximumMessageLength)=0

virtual uint32_t	ConnectionInfoLength () const =0

virtual void	ConnectionInfoLength (uint32_t ConnectionInfoLength)=0

Public Member Functions inherited from introvirt::windows::nt::NtSystemCall
virtual NTSTATUS	result () const =0
	Get the result code.

virtual void	result (NTSTATUS_CODE code)=0
	Set the result code.

Public Member Functions inherited from introvirt::windows::WindowsSystemCall
virtual SystemCallIndex	index () const =0
	Get the system call number.

Public Member Functions inherited from introvirt::SystemCall
virtual const std::string &	name () const =0
	Get the name of the system call.

virtual void	write (std::ostream &os=std::cout) const =0
	Write a human-readable description of this system call.

virtual Json::Value	json () const =0

virtual bool	will_return () const =0

virtual void	data (const std::string &key, const std::shared_ptr< void > &value)=0
	Store arbitrary data with the SystemCall.

virtual void	data (const std::string &key, std::shared_ptr< void > &&value)=0
	Store arbitrary data with the SystemCall.

virtual std::shared_ptr< void >	data (const std::string &key)=0
	Retrieve arbitrary data stored with the SystemCall.

virtual std::shared_ptr< const void >	data (const std::string &key) const =0
	Retrieve arbitrary data stored with the SystemCall.

virtual bool	supported () const =0
	Check if this system call is supported by a more specific handler.

virtual void	handle_return_event (Event &event)=0
	Handle a system call return event.

virtual	~SystemCall ()=default
	Destroy the instance.

Static Public Member Functions
static NTSTATUS	inject (uint64_t &ClientPortHandle, const UNICODE_STRING &ServerPortName, const guest_ptr< void > &pSecurityQos, const guest_ptr< void > &pClientSharedMemory, const guest_ptr< void > &pServerSharedMemory, uint32_t MaximumMessageLength, const guest_ptr< void > &pConnectionInfo, const uint32_t ConnectionInfoLength)

Detailed Description

Handler class for the NtConnectPort system call.

Member Function Documentation

◆ ClientPortHandle() [1/2]

virtual uint64_t introvirt::windows::nt::NtConnectPort::ClientPortHandle ( ) const

pure virtual

◆ ClientPortHandle() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ClientPortHandle ( uint64_t ClientPortHandle )

pure virtual

◆ ClientPortHandlePtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ClientPortHandlePtr ( ) const

pure virtual

Getter for ClientPortHandlePtr.

Returns: The address pointed to by the the ClientPortHandlePtr parameter

◆ ClientPortHandlePtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ClientPortHandlePtr ( const guest_ptr< void > & pClientPortHandle )

pure virtual

Setter for ClientPortHandlePtr.

Parameters

pClientPortHandle The address to set for the ClientPortHandlePtr parameter

◆ ClientSharedMemoryPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ClientSharedMemoryPtr ( ) const

pure virtual

Getter for ClientSharedMemoryPtr.

Returns: The address pointed to by the the ClientSharedMemoryPtr parameter

◆ ClientSharedMemoryPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ClientSharedMemoryPtr ( const guest_ptr< void > & pClientSharedMemory )

pure virtual

Setter for ClientSharedMemoryPtr.

Parameters

pClientSharedMemory The address to set for the ClientSharedMemoryPtr parameter

◆ ConnectionInfoLength() [1/2]

virtual uint32_t introvirt::windows::nt::NtConnectPort::ConnectionInfoLength ( ) const

pure virtual

◆ ConnectionInfoLength() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ConnectionInfoLength ( uint32_t ConnectionInfoLength )

pure virtual

◆ ConnectionInfoLengthPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ConnectionInfoLengthPtr ( ) const

pure virtual

Getter for ConnectionInfoLengthPtr.

Returns: The address pointed to by the the ConnectionInfoLengthPtr parameter

◆ ConnectionInfoLengthPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ConnectionInfoLengthPtr ( const guest_ptr< void > & pConnectionInfoLength )

pure virtual

Setter for ConnectionInfoLengthPtr.

Parameters

pConnectionInfoLength The address to set for the ConnectionInfoLengthPtr parameter

◆ ConnectionInfoPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ConnectionInfoPtr ( ) const

pure virtual

Getter for ConnectionInfoPtr.

Returns: The address pointed to by the the ConnectionInfoPtr parameter

◆ ConnectionInfoPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ConnectionInfoPtr ( const guest_ptr< void > & pConnectionInfo )

pure virtual

Setter for ConnectionInfoPtr.

Parameters

pConnectionInfo The address to set for the ConnectionInfoPtr parameter

◆ inject()

static NTSTATUS introvirt::windows::nt::NtConnectPort::inject	(	uint64_t &	ClientPortHandle,
		const UNICODE_STRING &	ServerPortName,
		const guest_ptr< void > &	pSecurityQos,
		const guest_ptr< void > &	pClientSharedMemory,
		const guest_ptr< void > &	pServerSharedMemory,
		uint32_t *	MaximumMessageLength,
		const guest_ptr< void > &	pConnectionInfo,
		const uint32_t *	ConnectionInfoLength
	)

static

◆ MaximumMessageLength() [1/2]

virtual uint32_t introvirt::windows::nt::NtConnectPort::MaximumMessageLength ( ) const

pure virtual

◆ MaximumMessageLength() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::MaximumMessageLength ( uint32_t MaximumMessageLength )

pure virtual

◆ MaximumMessageLengthPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::MaximumMessageLengthPtr ( ) const

pure virtual

Getter for MaximumMessageLengthPtr.

Returns: The address pointed to by the the MaximumMessageLengthPtr parameter

◆ MaximumMessageLengthPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::MaximumMessageLengthPtr ( const guest_ptr< void > & pMaximumMessageLength )

pure virtual

Setter for MaximumMessageLengthPtr.

Parameters

pMaximumMessageLength The address to set for the MaximumMessageLengthPtr parameter

◆ SecurityQosPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::SecurityQosPtr ( ) const

pure virtual

Getter for SecurityQosPtr.

Returns: The address pointed to by the the SecurityQosPtr parameter

◆ SecurityQosPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::SecurityQosPtr ( const guest_ptr< void > & pSecurityQos )

pure virtual

Setter for SecurityQosPtr.

Parameters

pSecurityQos The address to set for the SecurityQosPtr parameter

◆ ServerPortName() [1/2]

virtual const UNICODE_STRING * introvirt::windows::nt::NtConnectPort::ServerPortName ( ) const

pure virtual

◆ ServerPortName() [2/2]

virtual UNICODE_STRING * introvirt::windows::nt::NtConnectPort::ServerPortName ( )

pure virtual

◆ ServerPortNamePtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ServerPortNamePtr ( ) const

pure virtual

Getter for ServerPortNamePtr.

Returns: The address pointed to by the the ServerPortNamePtr parameter

◆ ServerPortNamePtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ServerPortNamePtr ( const guest_ptr< void > & pServerPortName )

pure virtual

Setter for ServerPortNamePtr.

Parameters

pServerPortName The address to set for the ServerPortNamePtr parameter

◆ ServerSharedMemoryPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtConnectPort::ServerSharedMemoryPtr ( ) const

pure virtual

Getter for ServerSharedMemoryPtr.

Returns: The address pointed to by the the ServerSharedMemoryPtr parameter

◆ ServerSharedMemoryPtr() [2/2]

virtual void introvirt::windows::nt::NtConnectPort::ServerSharedMemoryPtr ( const guest_ptr< void > & pServerSharedMemory )

pure virtual

Setter for ServerSharedMemoryPtr.

Parameters

pServerSharedMemory The address to set for the ServerSharedMemoryPtr parameter

The documentation for this class was generated from the following file:

/home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/kernel/nt/syscall/NtConnectPort.hh
