introvirt::windows::nt::NtCreatePort Class Reference

Handler class for the NtCreatePort system call. More...

#include <NtCreatePort.hh>

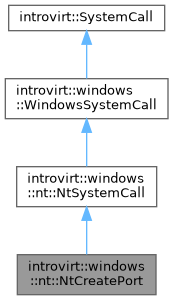

Inheritance diagram for introvirt::windows::nt::NtCreatePort:

Collaboration diagram for introvirt::windows::nt::NtCreatePort:

Public Member Functions
virtual guest_ptr< void >	PortHandlePtr () const =0
	Getter for PortHandlePtr.
virtual guest_ptr< void >	ObjectAttributesPtr () const =0
	Getter for ObjectAttributesPtr.
virtual uint32_t	MaxConnectionInfoLength () const =0
	Getter for MaxConnectionInfoLength.
virtual uint32_t	MaxMessageLength () const =0
	Getter for MaxMessageLength.
virtual uint32_t	MaxPoolUsage () const =0
	Getter for MaxPoolUsage.
virtual void	PortHandlePtr (const guest_ptr< void > &pPortHandle)=0
	Setter for PortHandlePtr.
virtual void	ObjectAttributesPtr (const guest_ptr< void > &pObjectAttributes)=0
	Setter for ObjectAttributesPtr.
virtual void	MaxConnectionInfoLength (uint32_t MaxConnectionInfoLength)=0
	Setter for MaxConnectionInfoLength.
virtual void	MaxMessageLength (uint32_t MaxMessageLength)=0
	Setter for MaxMessageLength.
virtual void	MaxPoolUsage (uint32_t MaxPoolUsage)=0
	Setter for MaxPoolUsage.
virtual uint64_t	PortHandle () const =0
virtual void	PortHandle (uint64_t PortHandle)=0
virtual const OBJECT_ATTRIBUTES *	ObjectAttributes () const =0
virtual OBJECT_ATTRIBUTES *	ObjectAttributes ()=0
Public Member Functions inherited from introvirt::windows::nt::NtSystemCall
virtual NTSTATUS	result () const =0
	Get the result code.
virtual void	result (NTSTATUS_CODE code)=0
	Set the result code.
Public Member Functions inherited from introvirt::windows::WindowsSystemCall
virtual SystemCallIndex	index () const =0
	Get the system call number.
Public Member Functions inherited from introvirt::SystemCall
virtual const std::string &	name () const =0
	Get the name of the system call.
virtual void	write (std::ostream &os=std::cout) const =0
	Write a human-readable description of this system call.
virtual Json::Value	json () const =0
virtual bool	will_return () const =0
virtual void	data (const std::string &key, const std::shared_ptr< void > &value)=0
	Store arbitrary data with the SystemCall.
virtual void	data (const std::string &key, std::shared_ptr< void > &&value)=0
	Store arbitrary data with the SystemCall.
virtual std::shared_ptr< void >	data (const std::string &key)=0
	Retrieve arbitrary data stored with the SystemCall.
virtual std::shared_ptr< const void >	data (const std::string &key) const =0
	Retrieve arbitrary data stored with the SystemCall.
virtual bool	supported () const =0
	Check if this system call is supported by a more specific handler.
virtual void	handle_return_event (Event &event)=0
	Handle a system call return event.
virtual	~SystemCall ()=default
	Destroy the instance.

Static Public Member Functions
static NTSTATUS	inject (uint64_t &PortHandle, const guest_ptr< void > &pObjectAttributes, uint32_t MaxConnectionInfoLength, uint32_t MaxMessageLength, uint32_t MaxPoolUsage)

Detailed Description

Handler class for the NtCreatePort system call.

Member Function Documentation

inject()

static NTSTATUS introvirt::windows::nt::NtCreatePort::inject ( uint64_t &  PortHandle, const guest_ptr< void > &  pObjectAttributes, uint32_t  MaxConnectionInfoLength, uint32_t  MaxMessageLength, uint32_t  MaxPoolUsage  )

static

MaxConnectionInfoLength() [1/2]

virtual uint32_t introvirt::windows::nt::NtCreatePort::MaxConnectionInfoLength ( ) const

pure virtual

Getter for MaxConnectionInfoLength.

Returns

The value of the MaxConnectionInfoLength parameter

MaxConnectionInfoLength() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::MaxConnectionInfoLength ( uint32_t  MaxConnectionInfoLength )

pure virtual

Setter for MaxConnectionInfoLength.

Parameters

MaxConnectionInfoLength

The value to set for the MaxConnectionInfoLength parameter

MaxMessageLength() [1/2]

virtual uint32_t introvirt::windows::nt::NtCreatePort::MaxMessageLength ( ) const

pure virtual

Getter for MaxMessageLength.

Returns

The value of the MaxMessageLength parameter

MaxMessageLength() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::MaxMessageLength ( uint32_t  MaxMessageLength )

pure virtual

Setter for MaxMessageLength.

Parameters

MaxMessageLength

The value to set for the MaxMessageLength parameter

MaxPoolUsage() [1/2]

virtual uint32_t introvirt::windows::nt::NtCreatePort::MaxPoolUsage ( ) const

pure virtual

Getter for MaxPoolUsage.

Returns

The value of the MaxPoolUsage parameter

MaxPoolUsage() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::MaxPoolUsage ( uint32_t  MaxPoolUsage )

pure virtual

Setter for MaxPoolUsage.

Parameters

MaxPoolUsage

The value to set for the MaxPoolUsage parameter

ObjectAttributes() [1/2]

virtual const OBJECT_ATTRIBUTES * introvirt::windows::nt::NtCreatePort::ObjectAttributes ( ) const

pure virtual

ObjectAttributes() [2/2]

virtual OBJECT_ATTRIBUTES * introvirt::windows::nt::NtCreatePort::ObjectAttributes ( )

pure virtual

ObjectAttributesPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtCreatePort::ObjectAttributesPtr ( ) const

pure virtual

Getter for ObjectAttributesPtr.

Returns

The address pointed to by the the ObjectAttributesPtr parameter

ObjectAttributesPtr() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::ObjectAttributesPtr ( const guest_ptr< void > &  pObjectAttributes )

pure virtual

Setter for ObjectAttributesPtr.

Parameters

pObjectAttributes

The address to set for the ObjectAttributesPtr parameter

PortHandle() [1/2]

virtual uint64_t introvirt::windows::nt::NtCreatePort::PortHandle ( ) const

pure virtual

PortHandle() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::PortHandle ( uint64_t  PortHandle )

pure virtual

PortHandlePtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtCreatePort::PortHandlePtr ( ) const

pure virtual

Getter for PortHandlePtr.

Returns

The address pointed to by the the PortHandlePtr parameter

PortHandlePtr() [2/2]

virtual void introvirt::windows::nt::NtCreatePort::PortHandlePtr ( const guest_ptr< void > &  pPortHandle )

pure virtual

Setter for PortHandlePtr.

Parameters

pPortHandle

The address to set for the PortHandlePtr parameter

---

The documentation for this class was generated from the following file:

• /home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/kernel/nt/syscall/NtCreatePort.hh
