Handler class for the NtReadWriteFile system call. More...

#include <NtReadWriteFile.hh>

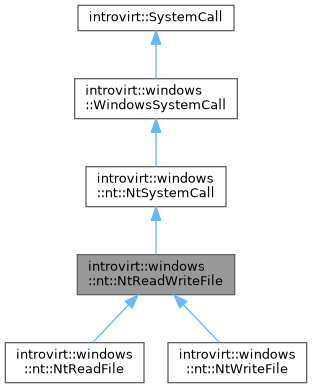

Inheritance diagram for introvirt::windows::nt::NtReadWriteFile:

[legend]

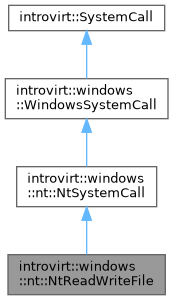

Collaboration diagram for introvirt::windows::nt::NtReadWriteFile:

[legend]

Public Member Functions
virtual uint64_t	FileHandle () const =0
	Getter for FileHandle.

virtual uint64_t	Event () const =0
	Getter for Event.

virtual guest_ptr< void >	ApcRoutinePtr () const =0
	Getter for ApcRoutinePtr.

virtual guest_ptr< void >	ApcContextPtr () const =0
	Getter for ApcContextPtr.

virtual guest_ptr< void >	IoStatusBlockPtr () const =0
	Getter for IoStatusBlockPtr.

virtual guest_ptr< void >	BufferPtr () const =0
	Getter for BufferPtr.

virtual uint32_t	Length () const =0
	Getter for Length.

virtual guest_ptr< void >	ByteOffsetPtr () const =0
	Getter for ByteOffsetPtr.

virtual guest_ptr< void >	KeyPtr () const =0
	Getter for KeyPtr.

virtual void	FileHandle (uint64_t FileHandle)=0
	Setter for FileHandle.

virtual void	Event (uint64_t Event)=0
	Setter for Event.

virtual void	ApcRoutinePtr (const guest_ptr< void > &pApcRoutine)=0
	Setter for ApcRoutinePtr.

virtual void	ApcContextPtr (const guest_ptr< void > &pApcContext)=0
	Setter for ApcContextPtr.

virtual void	IoStatusBlockPtr (const guest_ptr< void > &pIoStatusBlock)=0
	Setter for IoStatusBlockPtr.

virtual void	BufferPtr (const guest_ptr< void > &pBuffer)=0
	Setter for BufferPtr.

virtual void	Length (uint32_t Length)=0
	Setter for Length.

virtual void	ByteOffsetPtr (const guest_ptr< void > &pByteOffset)=0
	Setter for ByteOffsetPtr.

virtual void	KeyPtr (const guest_ptr< void > &pKey)=0
	Setter for KeyPtr.

virtual const IO_STATUS_BLOCK *	IoStatusBlock () const =0

virtual IO_STATUS_BLOCK *	IoStatusBlock ()=0

virtual int64_t	ByteOffset () const =0

virtual void	ByteOffset (int64_t ByteOffset)=0

virtual uint32_t	Key () const =0

virtual void	Key (uint32_t Key)=0

Public Member Functions inherited from introvirt::windows::nt::NtSystemCall
virtual NTSTATUS	result () const =0
	Get the result code.

virtual void	result (NTSTATUS_CODE code)=0
	Set the result code.

Public Member Functions inherited from introvirt::windows::WindowsSystemCall
virtual SystemCallIndex	index () const =0
	Get the system call number.

Public Member Functions inherited from introvirt::SystemCall
virtual const std::string &	name () const =0
	Get the name of the system call.

virtual void	write (std::ostream &os=std::cout) const =0
	Write a human-readable description of this system call.

virtual Json::Value	json () const =0

virtual bool	will_return () const =0

virtual void	data (const std::string &key, const std::shared_ptr< void > &value)=0
	Store arbitrary data with the SystemCall.

virtual void	data (const std::string &key, std::shared_ptr< void > &&value)=0
	Store arbitrary data with the SystemCall.

virtual std::shared_ptr< void >	data (const std::string &key)=0
	Retrieve arbitrary data stored with the SystemCall.

virtual std::shared_ptr< const void >	data (const std::string &key) const =0
	Retrieve arbitrary data stored with the SystemCall.

virtual bool	supported () const =0
	Check if this system call is supported by a more specific handler.

virtual void	handle_return_event (Event &event)=0
	Handle a system call return event.

virtual	~SystemCall ()=default
	Destroy the instance.

Detailed Description

Handler class for the NtReadWriteFile system call.

Member Function Documentation

◆ ApcContextPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::ApcContextPtr ( ) const

pure virtual

Getter for ApcContextPtr.

Returns: The address pointed to by the the ApcContextPtr parameter

◆ ApcContextPtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::ApcContextPtr ( const guest_ptr< void > & pApcContext )

pure virtual

Setter for ApcContextPtr.

Parameters

pApcContext The address to set for the ApcContextPtr parameter

◆ ApcRoutinePtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::ApcRoutinePtr ( ) const

pure virtual

Getter for ApcRoutinePtr.

Returns: The address pointed to by the the ApcRoutinePtr parameter

◆ ApcRoutinePtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::ApcRoutinePtr ( const guest_ptr< void > & pApcRoutine )

pure virtual

Setter for ApcRoutinePtr.

Parameters

pApcRoutine The address to set for the ApcRoutinePtr parameter

◆ BufferPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::BufferPtr ( ) const

pure virtual

Getter for BufferPtr.

Returns: The address pointed to by the the BufferPtr parameter

◆ BufferPtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::BufferPtr ( const guest_ptr< void > & pBuffer )

pure virtual

Setter for BufferPtr.

Parameters

pBuffer The address to set for the BufferPtr parameter

◆ ByteOffset() [1/2]

virtual int64_t introvirt::windows::nt::NtReadWriteFile::ByteOffset ( ) const

pure virtual

◆ ByteOffset() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::ByteOffset ( int64_t ByteOffset )

pure virtual

◆ ByteOffsetPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::ByteOffsetPtr ( ) const

pure virtual

Getter for ByteOffsetPtr.

Returns: The address pointed to by the the ByteOffsetPtr parameter

◆ ByteOffsetPtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::ByteOffsetPtr ( const guest_ptr< void > & pByteOffset )

pure virtual

Setter for ByteOffsetPtr.

Parameters

pByteOffset The address to set for the ByteOffsetPtr parameter

◆ Event() [1/2]

virtual uint64_t introvirt::windows::nt::NtReadWriteFile::Event ( ) const

pure virtual

Getter for Event.

Returns: The value of the Event parameter

◆ Event() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::Event ( uint64_t Event )

pure virtual

Setter for Event.

Parameters

Event The value to set for the Event parameter

◆ FileHandle() [1/2]

virtual uint64_t introvirt::windows::nt::NtReadWriteFile::FileHandle ( ) const

pure virtual

Getter for FileHandle.

Returns: The value of the FileHandle parameter

◆ FileHandle() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::FileHandle ( uint64_t FileHandle )

pure virtual

Setter for FileHandle.

Parameters

FileHandle The value to set for the FileHandle parameter

◆ IoStatusBlock() [1/2]

virtual const IO_STATUS_BLOCK * introvirt::windows::nt::NtReadWriteFile::IoStatusBlock ( ) const

pure virtual

◆ IoStatusBlock() [2/2]

virtual IO_STATUS_BLOCK * introvirt::windows::nt::NtReadWriteFile::IoStatusBlock ( )

pure virtual

◆ IoStatusBlockPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::IoStatusBlockPtr ( ) const

pure virtual

Getter for IoStatusBlockPtr.

Returns: The address pointed to by the the IoStatusBlockPtr parameter

◆ IoStatusBlockPtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::IoStatusBlockPtr ( const guest_ptr< void > & pIoStatusBlock )

pure virtual

Setter for IoStatusBlockPtr.

Parameters

pIoStatusBlock The address to set for the IoStatusBlockPtr parameter

◆ Key() [1/2]

virtual uint32_t introvirt::windows::nt::NtReadWriteFile::Key ( ) const

pure virtual

◆ Key() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::Key ( uint32_t Key )

pure virtual

◆ KeyPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtReadWriteFile::KeyPtr ( ) const

pure virtual

Getter for KeyPtr.

Returns: The address pointed to by the the KeyPtr parameter

◆ KeyPtr() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::KeyPtr ( const guest_ptr< void > & pKey )

pure virtual

Setter for KeyPtr.

Parameters

pKey	The address to set for the KeyPtr parameter

◆ Length() [1/2]

virtual uint32_t introvirt::windows::nt::NtReadWriteFile::Length ( ) const

pure virtual

Getter for Length.

Returns: The value of the Length parameter

◆ Length() [2/2]

virtual void introvirt::windows::nt::NtReadWriteFile::Length ( uint32_t Length )

pure virtual

Setter for Length.

Parameters

Length The value to set for the Length parameter

The documentation for this class was generated from the following file:

/home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/kernel/nt/syscall/NtReadWriteFile.hh
