Handler class for the NtRemoveIoCompletion system call. More...

#include <NtRemoveIoCompletion.hh>

Inheritance diagram for introvirt::windows::nt::NtRemoveIoCompletion:

[legend]

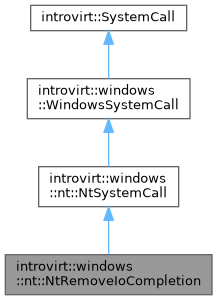

Collaboration diagram for introvirt::windows::nt::NtRemoveIoCompletion:

[legend]

Public Member Functions
virtual uint64_t	IoCompletionHandle () const =0
	Getter for IoCompletionHandle.

virtual guest_ptr< void >	CompletionKeyPtr () const =0
	Getter for CompletionKeyPtr.

virtual guest_ptr< void >	CompletionValuePtr () const =0
	Getter for CompletionValuePtr.

virtual guest_ptr< void >	IoStatusBlockPtr () const =0
	Getter for IoStatusBlockPtr.

virtual guest_ptr< void >	TimeoutPtr () const =0
	Getter for TimeoutPtr.

virtual void	IoCompletionHandle (uint64_t IoCompletionHandle)=0
	Setter for IoCompletionHandle.

virtual void	CompletionKeyPtr (const guest_ptr< void > &pCompletionKey)=0
	Setter for CompletionKeyPtr.

virtual void	CompletionValuePtr (const guest_ptr< void > &pCompletionValue)=0
	Setter for CompletionValuePtr.

virtual void	IoStatusBlockPtr (const guest_ptr< void > &pIoStatusBlock)=0
	Setter for IoStatusBlockPtr.

virtual void	TimeoutPtr (const guest_ptr< void > &pTimeout)=0
	Setter for TimeoutPtr.

virtual uint32_t	CompletionKey () const =0

virtual void	CompletionKey (uint32_t CompletionKey)=0

virtual uint32_t	CompletionValue () const =0

virtual void	CompletionValue (uint32_t CompletionValue)=0

virtual const IO_STATUS_BLOCK *	IoStatusBlock () const =0

virtual IO_STATUS_BLOCK *	IoStatusBlock ()=0

virtual int64_t	Timeout () const =0

virtual void	Timeout (int64_t Timeout)=0

Public Member Functions inherited from introvirt::windows::nt::NtSystemCall
virtual NTSTATUS	result () const =0
	Get the result code.

virtual void	result (NTSTATUS_CODE code)=0
	Set the result code.

Public Member Functions inherited from introvirt::windows::WindowsSystemCall
virtual SystemCallIndex	index () const =0
	Get the system call number.

Public Member Functions inherited from introvirt::SystemCall
virtual const std::string &	name () const =0
	Get the name of the system call.

virtual void	write (std::ostream &os=std::cout) const =0
	Write a human-readable description of this system call.

virtual Json::Value	json () const =0

virtual bool	will_return () const =0

virtual void	data (const std::string &key, const std::shared_ptr< void > &value)=0
	Store arbitrary data with the SystemCall.

virtual void	data (const std::string &key, std::shared_ptr< void > &&value)=0
	Store arbitrary data with the SystemCall.

virtual std::shared_ptr< void >	data (const std::string &key)=0
	Retrieve arbitrary data stored with the SystemCall.

virtual std::shared_ptr< const void >	data (const std::string &key) const =0
	Retrieve arbitrary data stored with the SystemCall.

virtual bool	supported () const =0
	Check if this system call is supported by a more specific handler.

virtual void	handle_return_event (Event &event)=0
	Handle a system call return event.

virtual	~SystemCall ()=default
	Destroy the instance.

Static Public Member Functions
static NTSTATUS	inject (uint64_t IoCompletionHandle, uint32_t &CompletionKey, uint32_t &CompletionValue, const guest_ptr< void > &pIoStatusBlock, const int64_t *Timeout)

Detailed Description

Handler class for the NtRemoveIoCompletion system call.

Member Function Documentation

◆ CompletionKey() [1/2]

virtual uint32_t introvirt::windows::nt::NtRemoveIoCompletion::CompletionKey ( ) const

pure virtual

◆ CompletionKey() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::CompletionKey ( uint32_t CompletionKey )

pure virtual

◆ CompletionKeyPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtRemoveIoCompletion::CompletionKeyPtr ( ) const

pure virtual

Getter for CompletionKeyPtr.

Returns: The address pointed to by the the CompletionKeyPtr parameter

◆ CompletionKeyPtr() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::CompletionKeyPtr ( const guest_ptr< void > & pCompletionKey )

pure virtual

Setter for CompletionKeyPtr.

Parameters

pCompletionKey The address to set for the CompletionKeyPtr parameter

◆ CompletionValue() [1/2]

virtual uint32_t introvirt::windows::nt::NtRemoveIoCompletion::CompletionValue ( ) const

pure virtual

◆ CompletionValue() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::CompletionValue ( uint32_t CompletionValue )

pure virtual

◆ CompletionValuePtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtRemoveIoCompletion::CompletionValuePtr ( ) const

pure virtual

Getter for CompletionValuePtr.

Returns: The address pointed to by the the CompletionValuePtr parameter

◆ CompletionValuePtr() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::CompletionValuePtr ( const guest_ptr< void > & pCompletionValue )

pure virtual

Setter for CompletionValuePtr.

Parameters

pCompletionValue The address to set for the CompletionValuePtr parameter

◆ inject()

static NTSTATUS introvirt::windows::nt::NtRemoveIoCompletion::inject	(	uint64_t	IoCompletionHandle,
		uint32_t &	CompletionKey,
		uint32_t &	CompletionValue,
		const guest_ptr< void > &	pIoStatusBlock,
		const int64_t *	Timeout
	)

static

◆ IoCompletionHandle() [1/2]

virtual uint64_t introvirt::windows::nt::NtRemoveIoCompletion::IoCompletionHandle ( ) const

pure virtual

Getter for IoCompletionHandle.

Returns: The value of the IoCompletionHandle parameter

◆ IoCompletionHandle() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::IoCompletionHandle ( uint64_t IoCompletionHandle )

pure virtual

Setter for IoCompletionHandle.

Parameters

IoCompletionHandle The value to set for the IoCompletionHandle parameter

◆ IoStatusBlock() [1/2]

virtual const IO_STATUS_BLOCK * introvirt::windows::nt::NtRemoveIoCompletion::IoStatusBlock ( ) const

pure virtual

◆ IoStatusBlock() [2/2]

virtual IO_STATUS_BLOCK * introvirt::windows::nt::NtRemoveIoCompletion::IoStatusBlock ( )

pure virtual

◆ IoStatusBlockPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtRemoveIoCompletion::IoStatusBlockPtr ( ) const

pure virtual

Getter for IoStatusBlockPtr.

Returns: The address pointed to by the the IoStatusBlockPtr parameter

◆ IoStatusBlockPtr() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::IoStatusBlockPtr ( const guest_ptr< void > & pIoStatusBlock )

pure virtual

Setter for IoStatusBlockPtr.

Parameters

pIoStatusBlock The address to set for the IoStatusBlockPtr parameter

◆ Timeout() [1/2]

virtual int64_t introvirt::windows::nt::NtRemoveIoCompletion::Timeout ( ) const

pure virtual

◆ Timeout() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::Timeout ( int64_t Timeout )

pure virtual

◆ TimeoutPtr() [1/2]

virtual guest_ptr< void > introvirt::windows::nt::NtRemoveIoCompletion::TimeoutPtr ( ) const

pure virtual

Getter for TimeoutPtr.

Returns: The address pointed to by the the TimeoutPtr parameter

◆ TimeoutPtr() [2/2]

virtual void introvirt::windows::nt::NtRemoveIoCompletion::TimeoutPtr ( const guest_ptr< void > & pTimeout )

pure virtual

Setter for TimeoutPtr.

Parameters

pTimeout The address to set for the TimeoutPtr parameter

The documentation for this class was generated from the following file:

/home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/kernel/nt/syscall/NtRemoveIoCompletion.hh
