introvirt::windows::ws2_32::ConnectEx Class Reference

Handler for ws2_32!ConnectEx. More...

#include <ConnectEx.hh>

Inheritance diagram for introvirt::windows::ws2_32::ConnectEx:

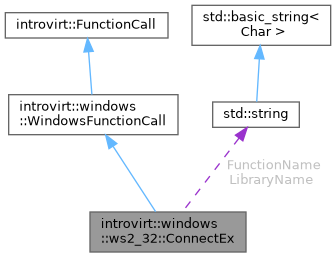

Collaboration diagram for introvirt::windows::ws2_32::ConnectEx:

Public Member Functions
SOCKET	s () const
void	s (SOCKET s)
guest_ptr< void >	pname () const
void	pname (const guest_ptr< void > &pname)
std::shared_ptr< SOCKADDR >	name ()
int32_t	namelen () const
void	namelen (int32_t namelen)
guest_ptr< uint8_t[]>	pSendBuffer () const
void	pSendBuffer (const guest_ptr< uint8_t[]> &pSendBuffer)
uint32_t	dwSendDataLength () const
void	dwSendDataLength (uint32_t dwSendDataLength)
guest_ptr< uint32_t >	pdwBytesSent () const
void	pdwBytesSent (const guest_ptr< uint32_t > &pdwBytesSent)
guest_ptr< void >	pOverlapped () const
void	pOverlapped (const guest_ptr< void > &pOverlapped)
std::shared_ptr< OVERLAPPED >	Overlapped ()
const std::string &	function_name () const override
	Get the function name.
const std::string &	library_name () const override
	Get the name of the library this call is for.
void	write (std::ostream &os=std::cout) const override
	Write out a textual representation of the function for display.
Json::Value	json () const override
	Get the function as Json.
bool	result () const
void	result (bool result)
	ConnectEx (Event &event)
	~ConnectEx () override
Public Member Functions inherited from introvirt::windows::WindowsFunctionCall
guest_ptr< void >	return_address () const override
	Get the return address for this function call.
void	return_address (const guest_ptr< void > &value) override
	Set the return address for this function call.
bool	is_return_event (Event &event) const override
	Check if the given event is a return event for this function call.
void	handle_return (Event &event) override
	Handle the return event.
bool	returned () const override
	Check if the call has returned.
bool	x64 () const
	Check if the call is from x64 mode.hh>
virtual	~WindowsFunctionCall ()
Public Member Functions inherited from introvirt::FunctionCall
bool	hook_return () const
	Check if the user is requesting that the return be intercepted.
void	hook_return (bool val)
	Configure if the return should be intercepted.
void	data (const std::string &key, const std::shared_ptr< void > &value)
	Store arbitrary data with the FunctionCall.
void	data (const std::string &key, std::shared_ptr< void > &&value)
	Store arbitrary data with the FunctionCall.
std::shared_ptr< void >	data (const std::string &key)
	Retrieve arbitrary data stored with the FunctionCall.
std::shared_ptr< const void >	data (const std::string &key) const
	Retrieve arbitrary data stored with the FunctionCall.
virtual	~FunctionCall ()=default

Static Public Member Functions
static bool	inject (SOCKET s, const guest_ptr< void > &pname, int32_t namelen, const guest_ptr< uint8_t[]> &pSendBuffer, uint32_t dwSendDataLength, const guest_ptr< uint32_t > &pdwBytesSent, const guest_ptr< void > &pOverlapped)

Static Public Attributes
static constexpr int	ArgumentCount = 7
static const std::string	LibraryName = "ws2_32"
static const std::string	FunctionName = "ConnectEx"

Additional Inherited Members
Protected Member Functions inherited from introvirt::windows::WindowsFunctionCall
uint64_t	raw_return_value () const
void	raw_return_value (uint64_t value)
uint64_t	get_argument (unsigned int index) const
void	set_argument (unsigned int index, uint64_t value)
guest_ptr< void >	get_address_argument (unsigned int index) const
void	set_address_argument (unsigned int index, const guest_ptr< void > &address)
Vcpu &	vcpu ()
const Vcpu &	vcpu () const
	WindowsFunctionCall (Event &event, unsigned int argument_count, WindowsCallType type=WindowsCallType::AUTO)

Detailed Description

Handler for ws2_32!ConnectEx.

See also

https://docs.microsoft.com/en-us/windows/win32/api/mswsock/nc-mswsock-lpfn_connectex

Constructor & Destructor Documentation

ConnectEx()

introvirt::windows::ws2_32::ConnectEx::ConnectEx

(

Event &

event

)

~ConnectEx()

introvirt::windows::ws2_32::ConnectEx::~ConnectEx ( )

override

Member Function Documentation

dwSendDataLength() [1/2]

uint32_t introvirt::windows::ws2_32::ConnectEx::dwSendDataLength

(

)

const

dwSendDataLength() [2/2]

void introvirt::windows::ws2_32::ConnectEx::dwSendDataLength

(

uint32_t

dwSendDataLength

)

function_name()

const std::string & introvirt::windows::ws2_32::ConnectEx::function_name ( ) const

overridevirtual

Get the function name.

Returns

const std::string&

Implements introvirt::FunctionCall.

inject()

static bool introvirt::windows::ws2_32::ConnectEx::inject ( SOCKET  s, const guest_ptr< void > &  pname, int32_t  namelen, const guest_ptr< uint8_t[]> &  pSendBuffer, uint32_t  dwSendDataLength, const guest_ptr< uint32_t > &  pdwBytesSent, const guest_ptr< void > &  pOverlapped  )

static

json()

Json::Value introvirt::windows::ws2_32::ConnectEx::json ( ) const

overridevirtual

Get the function as Json.

Returns

Json::Value

Implements introvirt::FunctionCall.

library_name()

const std::string & introvirt::windows::ws2_32::ConnectEx::library_name ( ) const

overridevirtual

Get the name of the library this call is for.

Returns

const std::string&

Implements introvirt::FunctionCall.

name()

std::shared_ptr< SOCKADDR > introvirt::windows::ws2_32::ConnectEx::name

(

)

namelen() [1/2]

int32_t introvirt::windows::ws2_32::ConnectEx::namelen

(

)

const

namelen() [2/2]

void introvirt::windows::ws2_32::ConnectEx::namelen

(

int32_t

namelen

)

Overlapped()

std::shared_ptr< OVERLAPPED > introvirt::windows::ws2_32::ConnectEx::Overlapped

(

)

pdwBytesSent() [1/2]

guest_ptr< uint32_t > introvirt::windows::ws2_32::ConnectEx::pdwBytesSent

(

)

const

pdwBytesSent() [2/2]

void introvirt::windows::ws2_32::ConnectEx::pdwBytesSent

(

const guest_ptr< uint32_t > &

pdwBytesSent

)

pname() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::ConnectEx::pname

(

)

const

pname() [2/2]

void introvirt::windows::ws2_32::ConnectEx::pname

(

const guest_ptr< void > &

pname

)

pOverlapped() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::ConnectEx::pOverlapped

(

)

const

pOverlapped() [2/2]

void introvirt::windows::ws2_32::ConnectEx::pOverlapped

(

const guest_ptr< void > &

pOverlapped

)

pSendBuffer() [1/2]

guest_ptr< uint8_t[]> introvirt::windows::ws2_32::ConnectEx::pSendBuffer

(

)

const

pSendBuffer() [2/2]

void introvirt::windows::ws2_32::ConnectEx::pSendBuffer

(

const guest_ptr< uint8_t[]> &

pSendBuffer

)

result() [1/2]

bool introvirt::windows::ws2_32::ConnectEx::result

(

)

const

result() [2/2]

void introvirt::windows::ws2_32::ConnectEx::result

(

bool

result

)

s() [1/2]

SOCKET introvirt::windows::ws2_32::ConnectEx::s

(

)

const

s() [2/2]

void introvirt::windows::ws2_32::ConnectEx::s

(

SOCKET

s

)

write()

void introvirt::windows::ws2_32::ConnectEx::write ( std::ostream &  os = std::cout ) const

overridevirtual

Write out a textual representation of the function for display.

Parameters

os

Implements introvirt::FunctionCall.

Member Data Documentation

ArgumentCount

constexpr int introvirt::windows::ws2_32::ConnectEx::ArgumentCount = 7

staticconstexpr

FunctionName

const std::string introvirt::windows::ws2_32::ConnectEx::FunctionName = "ConnectEx"

inlinestatic

LibraryName

const std::string introvirt::windows::ws2_32::ConnectEx::LibraryName = "ws2_32"

inlinestatic

---

The documentation for this class was generated from the following file:

• /home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/libraries/ws2_32/functions/ConnectEx.hh
