Handler for ws2_32!WSARecvFrom. More...

#include <WSARecvFrom.hh>

Inheritance diagram for introvirt::windows::ws2_32::WSARecvFrom:

[legend]

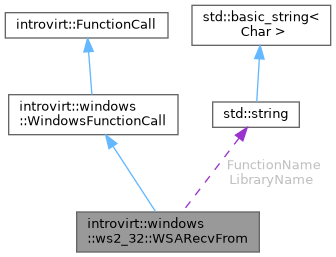

Collaboration diagram for introvirt::windows::ws2_32::WSARecvFrom:

[legend]

Public Member Functions
SOCKET	s () const

void	s (SOCKET s)

guest_ptr< void >	pBuffers () const

void	pBuffers (const guest_ptr< void > &pBuffers)

std::vector< std::shared_ptr< WSABUF > >	Buffers ()

uint32_t	dwBufferCount () const

void	dwBufferCount (uint32_t dwBufferCount)

guest_ptr< uint32_t >	pNumberOfBytesRecvd () const

void	pNumberOfBytesRecvd (const guest_ptr< uint32_t > &pNumberOfBytesRecvd)

guest_ptr< uint32_t >	pFlags () const

void	pFlags (const guest_ptr< uint32_t > &pFlags)

guest_ptr< void >	pFrom () const

void	pFrom (const guest_ptr< void > &pFrom)

std::shared_ptr< SOCKADDR >	From ()

guest_ptr< int32_t >	pFromlen () const

void	pFromlen (const guest_ptr< int32_t > &pFromlen)

guest_ptr< void >	pOverlapped () const

void	pOverlapped (const guest_ptr< void > &pOverlapped)

std::shared_ptr< WSAOVERLAPPED >	Overlapped ()

guest_ptr< void >	pCompletionRoutine () const

void	pCompletionRoutine (const guest_ptr< void > &pCompletionRoutine)

const std::string &	function_name () const override
	Get the function name.

const std::string &	library_name () const override
	Get the name of the library this call is for.

void	write (std::ostream &os=std::cout) const override
	Write out a textual representation of the function for display.

Json::Value	json () const override
	Get the function as Json.

int32_t	result () const

void	result (int32_t result)

	WSARecvFrom (Event &event)

	~WSARecvFrom () override

Public Member Functions inherited from introvirt::windows::WindowsFunctionCall
guest_ptr< void >	return_address () const override
	Get the return address for this function call.

void	return_address (const guest_ptr< void > &value) override
	Set the return address for this function call.

bool	is_return_event (Event &event) const override
	Check if the given event is a return event for this function call.

void	handle_return (Event &event) override
	Handle the return event.

bool	returned () const override
	Check if the call has returned.

bool	x64 () const
	Check if the call is from x64 mode.hh>

virtual	~WindowsFunctionCall ()

Public Member Functions inherited from introvirt::FunctionCall
bool	hook_return () const
	Check if the user is requesting that the return be intercepted.

void	hook_return (bool val)
	Configure if the return should be intercepted.

void	data (const std::string &key, const std::shared_ptr< void > &value)
	Store arbitrary data with the FunctionCall.

void	data (const std::string &key, std::shared_ptr< void > &&value)
	Store arbitrary data with the FunctionCall.

std::shared_ptr< void >	data (const std::string &key)
	Retrieve arbitrary data stored with the FunctionCall.

std::shared_ptr< const void >	data (const std::string &key) const
	Retrieve arbitrary data stored with the FunctionCall.

virtual	~FunctionCall ()=default

Static Public Member Functions
static int32_t	inject (SOCKET s, const guest_ptr< void > &pBuffers, uint32_t dwBufferCount, const guest_ptr< uint32_t > &pNumberOfBytesRecvd, const guest_ptr< uint32_t > &pFlags, const guest_ptr< void > &pFrom, const guest_ptr< int32_t > &pFromlen, const guest_ptr< void > &pOverlapped, const guest_ptr< void > &pCompletionRoutine)

Static Public Attributes
static constexpr int	ArgumentCount = 9

static const std::string	LibraryName = "ws2_32"

static const std::string	FunctionName = "WSARecvFrom"

Additional Inherited Members
Protected Member Functions inherited from introvirt::windows::WindowsFunctionCall
uint64_t	raw_return_value () const

void	raw_return_value (uint64_t value)

uint64_t	get_argument (unsigned int index) const

void	set_argument (unsigned int index, uint64_t value)

guest_ptr< void >	get_address_argument (unsigned int index) const

void	set_address_argument (unsigned int index, const guest_ptr< void > &address)

Vcpu &	vcpu ()

const Vcpu &	vcpu () const

	WindowsFunctionCall (Event &event, unsigned int argument_count, WindowsCallType type=WindowsCallType::AUTO)

Detailed Description

Handler for ws2_32!WSARecvFrom.

See also: https://docs.microsoft.com/en-us/windows/win32/api/winsock2/nf-winsock2-wsarecvfrom

Constructor & Destructor Documentation

◆ WSARecvFrom()

introvirt::windows::ws2_32::WSARecvFrom::WSARecvFrom ( Event & event )

◆ ~WSARecvFrom()

introvirt::windows::ws2_32::WSARecvFrom::~WSARecvFrom ( )

override

Member Function Documentation

◆ Buffers()

std::vector< std::shared_ptr< WSABUF > > introvirt::windows::ws2_32::WSARecvFrom::Buffers ( )

◆ dwBufferCount() [1/2]

uint32_t introvirt::windows::ws2_32::WSARecvFrom::dwBufferCount ( ) const

◆ dwBufferCount() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::dwBufferCount ( uint32_t dwBufferCount )

◆ From()

std::shared_ptr< SOCKADDR > introvirt::windows::ws2_32::WSARecvFrom::From ( )

◆ function_name()

const std::string & introvirt::windows::ws2_32::WSARecvFrom::function_name ( ) const

overridevirtual

Get the function name.

Returns: const std::string&

Implements introvirt::FunctionCall.

◆ inject()

static int32_t introvirt::windows::ws2_32::WSARecvFrom::inject	(	SOCKET	s,
		const guest_ptr< void > &	pBuffers,
		uint32_t	dwBufferCount,
		const guest_ptr< uint32_t > &	pNumberOfBytesRecvd,
		const guest_ptr< uint32_t > &	pFlags,
		const guest_ptr< void > &	pFrom,
		const guest_ptr< int32_t > &	pFromlen,
		const guest_ptr< void > &	pOverlapped,
		const guest_ptr< void > &	pCompletionRoutine
	)

static

◆ json()

Json::Value introvirt::windows::ws2_32::WSARecvFrom::json ( ) const

overridevirtual

Get the function as Json.

Returns: Json::Value

Implements introvirt::FunctionCall.

◆ library_name()

const std::string & introvirt::windows::ws2_32::WSARecvFrom::library_name ( ) const

overridevirtual

Get the name of the library this call is for.

Returns: const std::string&

Implements introvirt::FunctionCall.

◆ Overlapped()

std::shared_ptr< WSAOVERLAPPED > introvirt::windows::ws2_32::WSARecvFrom::Overlapped ( )

◆ pBuffers() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::WSARecvFrom::pBuffers ( ) const

◆ pBuffers() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pBuffers ( const guest_ptr< void > & pBuffers )

◆ pCompletionRoutine() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::WSARecvFrom::pCompletionRoutine ( ) const

◆ pCompletionRoutine() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pCompletionRoutine ( const guest_ptr< void > & pCompletionRoutine )

◆ pFlags() [1/2]

guest_ptr< uint32_t > introvirt::windows::ws2_32::WSARecvFrom::pFlags ( ) const

◆ pFlags() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pFlags ( const guest_ptr< uint32_t > & pFlags )

◆ pFrom() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::WSARecvFrom::pFrom ( ) const

◆ pFrom() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pFrom ( const guest_ptr< void > & pFrom )

◆ pFromlen() [1/2]

guest_ptr< int32_t > introvirt::windows::ws2_32::WSARecvFrom::pFromlen ( ) const

◆ pFromlen() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pFromlen ( const guest_ptr< int32_t > & pFromlen )

◆ pNumberOfBytesRecvd() [1/2]

guest_ptr< uint32_t > introvirt::windows::ws2_32::WSARecvFrom::pNumberOfBytesRecvd ( ) const

◆ pNumberOfBytesRecvd() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pNumberOfBytesRecvd ( const guest_ptr< uint32_t > & pNumberOfBytesRecvd )

◆ pOverlapped() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::WSARecvFrom::pOverlapped ( ) const

◆ pOverlapped() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::pOverlapped ( const guest_ptr< void > & pOverlapped )

◆ result() [1/2]

int32_t introvirt::windows::ws2_32::WSARecvFrom::result ( ) const

◆ result() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::result ( int32_t result )

◆ s() [1/2]

SOCKET introvirt::windows::ws2_32::WSARecvFrom::s ( ) const

◆ s() [2/2]

void introvirt::windows::ws2_32::WSARecvFrom::s ( SOCKET s )

◆ write()

void introvirt::windows::ws2_32::WSARecvFrom::write ( std::ostream & os = std::cout ) const

overridevirtual

Write out a textual representation of the function for display.

Parameters

os

Implements introvirt::FunctionCall.

Member Data Documentation

◆ ArgumentCount

constexpr int introvirt::windows::ws2_32::WSARecvFrom::ArgumentCount = 9

staticconstexpr

◆ FunctionName

const std::string introvirt::windows::ws2_32::WSARecvFrom::FunctionName = "WSARecvFrom"

inlinestatic

◆ LibraryName

const std::string introvirt::windows::ws2_32::WSARecvFrom::LibraryName = "ws2_32"

inlinestatic

The documentation for this class was generated from the following file:

/home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/libraries/ws2_32/functions/WSARecvFrom.hh
