introvirt::windows::ws2_32::WSASocketW Class Reference

Handler for ws2_32!WSASocketW. More...

#include <WSASocketW.hh>

Inheritance diagram for introvirt::windows::ws2_32::WSASocketW:

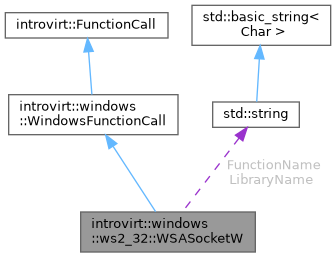

Collaboration diagram for introvirt::windows::ws2_32::WSASocketW:

Public Member Functions
int32_t	af () const
void	af (int32_t af)
int32_t	type () const
void	type (int32_t type)
int32_t	protocol () const
void	protocol (int32_t protocol)
guest_ptr< void >	pProtocolInfo () const
void	pProtocolInfo (const guest_ptr< void > &pProtocolInfo)
uint32_t	g () const
void	g (uint32_t g)
uint32_t	dwFlags () const
void	dwFlags (uint32_t dwFlags)
const std::string &	function_name () const override
	Get the function name.
const std::string &	library_name () const override
	Get the name of the library this call is for.
void	write (std::ostream &os=std::cout) const override
	Write out a textual representation of the function for display.
Json::Value	json () const override
	Get the function as Json.
SOCKET	result () const
void	result (SOCKET result)
	WSASocketW (Event &event)
	~WSASocketW () override
Public Member Functions inherited from introvirt::windows::WindowsFunctionCall
guest_ptr< void >	return_address () const override
	Get the return address for this function call.
void	return_address (const guest_ptr< void > &value) override
	Set the return address for this function call.
bool	is_return_event (Event &event) const override
	Check if the given event is a return event for this function call.
void	handle_return (Event &event) override
	Handle the return event.
bool	returned () const override
	Check if the call has returned.
bool	x64 () const
	Check if the call is from x64 mode.hh>
virtual	~WindowsFunctionCall ()
Public Member Functions inherited from introvirt::FunctionCall
bool	hook_return () const
	Check if the user is requesting that the return be intercepted.
void	hook_return (bool val)
	Configure if the return should be intercepted.
void	data (const std::string &key, const std::shared_ptr< void > &value)
	Store arbitrary data with the FunctionCall.
void	data (const std::string &key, std::shared_ptr< void > &&value)
	Store arbitrary data with the FunctionCall.
std::shared_ptr< void >	data (const std::string &key)
	Retrieve arbitrary data stored with the FunctionCall.
std::shared_ptr< const void >	data (const std::string &key) const
	Retrieve arbitrary data stored with the FunctionCall.
virtual	~FunctionCall ()=default

Static Public Member Functions
static SOCKET	inject (int32_t af, int32_t type, int32_t protocol, const guest_ptr< void > &pProtocolInfo, uint32_t g, uint32_t dwFlags)

Static Public Attributes
static constexpr int	ArgumentCount = 6
static const std::string	LibraryName = "ws2_32"
static const std::string	FunctionName = "WSASocketW"

Additional Inherited Members
Protected Member Functions inherited from introvirt::windows::WindowsFunctionCall
uint64_t	raw_return_value () const
void	raw_return_value (uint64_t value)
uint64_t	get_argument (unsigned int index) const
void	set_argument (unsigned int index, uint64_t value)
guest_ptr< void >	get_address_argument (unsigned int index) const
void	set_address_argument (unsigned int index, const guest_ptr< void > &address)
Vcpu &	vcpu ()
const Vcpu &	vcpu () const
	WindowsFunctionCall (Event &event, unsigned int argument_count, WindowsCallType type=WindowsCallType::AUTO)

Detailed Description

Handler for ws2_32!WSASocketW.

See also

https://docs.microsoft.com/en-us/windows/win32/api/winsock2/nf-winsock2-wsasocketw

Constructor & Destructor Documentation

WSASocketW()

introvirt::windows::ws2_32::WSASocketW::WSASocketW

(

Event &

event

)

~WSASocketW()

introvirt::windows::ws2_32::WSASocketW::~WSASocketW ( )

override

Member Function Documentation

af() [1/2]

int32_t introvirt::windows::ws2_32::WSASocketW::af

(

)

const

af() [2/2]

void introvirt::windows::ws2_32::WSASocketW::af

(

int32_t

af

)

dwFlags() [1/2]

uint32_t introvirt::windows::ws2_32::WSASocketW::dwFlags

(

)

const

dwFlags() [2/2]

void introvirt::windows::ws2_32::WSASocketW::dwFlags

(

uint32_t

dwFlags

)

function_name()

const std::string & introvirt::windows::ws2_32::WSASocketW::function_name ( ) const

overridevirtual

Get the function name.

Returns

const std::string&

Implements introvirt::FunctionCall.

g() [1/2]

uint32_t introvirt::windows::ws2_32::WSASocketW::g

(

)

const

g() [2/2]

void introvirt::windows::ws2_32::WSASocketW::g

(

uint32_t

g

)

inject()

static SOCKET introvirt::windows::ws2_32::WSASocketW::inject ( int32_t  af, int32_t  type, int32_t  protocol, const guest_ptr< void > &  pProtocolInfo, uint32_t  g, uint32_t  dwFlags  )

static

json()

Json::Value introvirt::windows::ws2_32::WSASocketW::json ( ) const

overridevirtual

Get the function as Json.

Returns

Json::Value

Implements introvirt::FunctionCall.

library_name()

const std::string & introvirt::windows::ws2_32::WSASocketW::library_name ( ) const

overridevirtual

Get the name of the library this call is for.

Returns

const std::string&

Implements introvirt::FunctionCall.

pProtocolInfo() [1/2]

guest_ptr< void > introvirt::windows::ws2_32::WSASocketW::pProtocolInfo

(

)

const

pProtocolInfo() [2/2]

void introvirt::windows::ws2_32::WSASocketW::pProtocolInfo

(

const guest_ptr< void > &

pProtocolInfo

)

protocol() [1/2]

int32_t introvirt::windows::ws2_32::WSASocketW::protocol

(

)

const

protocol() [2/2]

void introvirt::windows::ws2_32::WSASocketW::protocol

(

int32_t

protocol

)

result() [1/2]

SOCKET introvirt::windows::ws2_32::WSASocketW::result

(

)

const

result() [2/2]

void introvirt::windows::ws2_32::WSASocketW::result

(

SOCKET

result

)

type() [1/2]

int32_t introvirt::windows::ws2_32::WSASocketW::type

(

)

const

type() [2/2]

void introvirt::windows::ws2_32::WSASocketW::type

(

int32_t

type

)

write()

void introvirt::windows::ws2_32::WSASocketW::write ( std::ostream &  os = std::cout ) const

overridevirtual

Write out a textual representation of the function for display.

Parameters

os

Implements introvirt::FunctionCall.

Member Data Documentation

ArgumentCount

constexpr int introvirt::windows::ws2_32::WSASocketW::ArgumentCount = 6

staticconstexpr

FunctionName

const std::string introvirt::windows::ws2_32::WSASocketW::FunctionName = "WSASocketW"

inlinestatic

LibraryName

const std::string introvirt::windows::ws2_32::WSASocketW::LibraryName = "ws2_32"

inlinestatic

---

The documentation for this class was generated from the following file:

• /home/runner/work/IntroVirt/IntroVirt/include/introvirt/windows/libraries/ws2_32/functions/WSASocketW.hh
